Delta PLC

Leading Exporters, Wholesaler and Trader of Delta DVP SV Series PLC, Delta DVP-EH2 Series PLC, Delta DVP-ES2EX2 Series PLC, Delta DVP-PM Series PLC, Delta DVP-SA2 Series PLC, Delta DVP-SS2 Series PLC and Delta DVP-SX2 Series PLC from Thane.

Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
Applications 2-axis Servo Positioning Control
Series DVP SV Series
I/O Points 40 I/O Points
Type Semi-Automatic

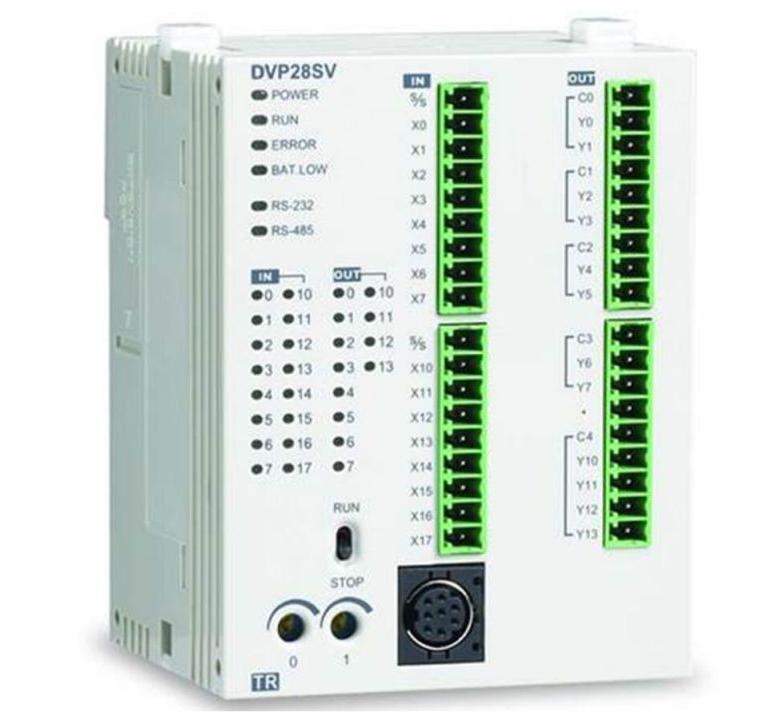

The new generation DVP-SV2 PLC is the high-end model of the Delta DVP-S series. It provides larger program capacities and data registers for more demanding and complex applications.



Applications

2-axis servo positioning control, material cutting machine (high-speed servo control), main hoist of crane, material clip controlled by servo, equipments in the optoelectronics industry, semiconductor industry, textile industry, energy saving activities and automation in buildings.



Specifications

  • High-speed pulse output: 4 sets of 200kHz pulse output
  • Supports max. 4 hardware 200kHz high-speed counters
  • Increases many motion control instructions to meet the applications that require high-speed and high-precision positioning
  • Offers linear / arc interpolation motion control
  • Provides up to 16 external interrupt pointers



Complete Program Protection

  • Auto backup function to prevent losing programs and data even when the battery runs out
  • Second copy function provides a backup for extra insurance in the event that one set of programs and data are damaged
  • Up to 4-level password protection protects your source programs and intellectual property
Read More...


Yes! I am interested


Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
MPU Points: 16 / 20 / 32 / 40 / 48 / 64 / 80
Max. I/O points 512
instruction Execution Speed 0.24µS (basic instruction)
Program Capacity 16k Steps
Data Register 10,000 Words
file Register 10,000 Words

Click to view more

Features :

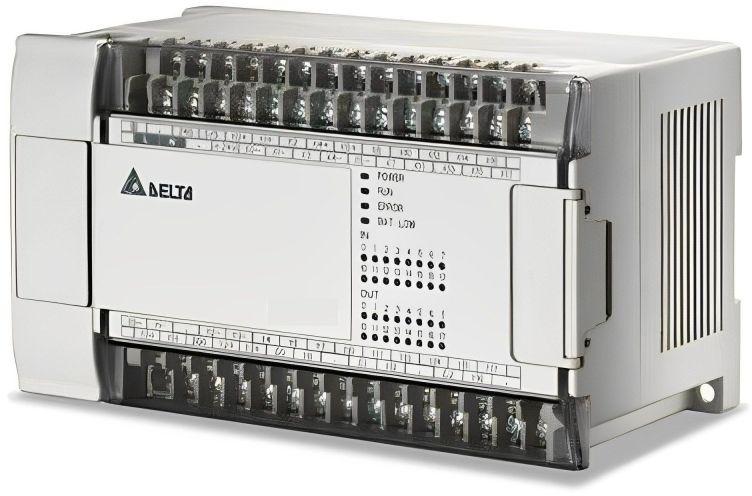

EH2 series is well equipped with outstanding operational speed, large programming capacity and built in application and communication instructions, multiple special extension modules and function cards, enabling the efficiency of the MPU to be utilized to its fullness.

Read More...


Yes! I am interested


Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
Application Emerging Industry
MPU Points 16 / 20 / 24 / 32 / 40 / 60
Series DVP Series PLC
Program Capacity 16k Steps

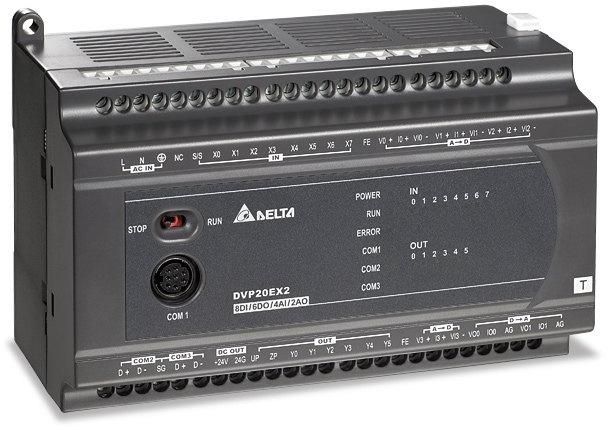

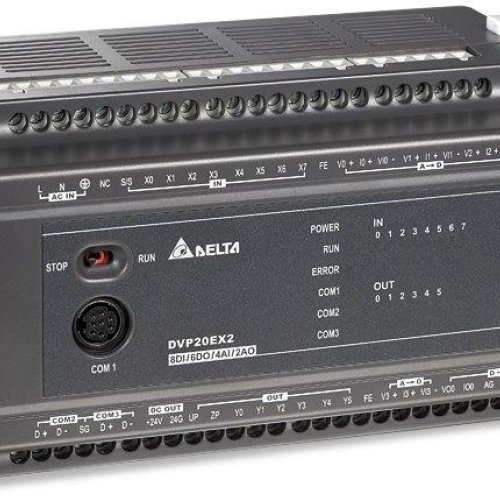

Specifications

  • MPU points: 16 / 20 / 24 / 32 / 40 / 60
  • Program capacity: 16k steps
  • Built-in with 3 COM ports: 1 RS-232 port and 2 RS-485 ports, all are able to operate independently (Master/Slave)
  • Max. I/O points: 256 input points + 16 output points, or 256 output points + 16 input points
  • DVP-EX2 MPU is built in with 12-bit 4AD/2DA and offers analog/temperature modules of 14-bit resolution.
  • Built-in with 8 high-speed input points (2 points for 100kHz, 6 points for 10kHz) and supports U/D, U/D Dir, A/B counting modes
  • New motion control instructions: Close loop control, alignment mark, shield, immediate variable speed, S-Curve acceleration/deceleration
  • Application in emerging industry: Exclusive instructions and function blocks designed for PV solar tracker
  • Handy instructions for frequency inverter: For controlling the forward running, reverse running, RUN and STOP of Delta@@s AC motor drives
  • Password protection: Password for subroutine, user ID, restriction on trial times
  • Highly efficient instruction efficient instruction execution
Read More...


Yes! I am interested


Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
Applications Used for 2-axis Servo Positioning Control
MPU Points 16
Max. I/O points 512
Program Capacity 64K Steps
Data Register 10,000 Words (latched)
X-axis Pulse Output (FP0+, FP0-), (RP0+, RP0-)
Y-axis Pulse Output (FP1+, FP1-), (RP1+, RP1-)

Click to view more

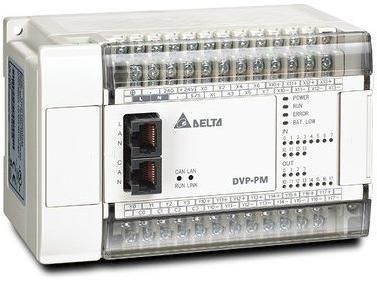

The advanced PM series motion control MPU can become the motion extension module of another PM series MPU, very flexible in all kinds of applications.



Applications

Used for 2-axis servo positioning control, material cutting machine (high-speed servo control), crane operations, material clipper controlled by the servo.

Read More...


Yes! I am interested


Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
Applications Printing Machine, Dying Machine, Container Filler (for Prescription’s), Work Station Monitoring in Production Line
MPU points 12 (8DI + 4DO)
Max. I/O points 492 (12 + 480)
Program Capacity 16k Steps

The 2nd generation DVP-SA2 series slim type PLC offers bigger program capacity and executing efficiency, offering 100 kHz high-speed output and counting functions. It is extendable with DVP-S series left-side and right-side extension modules.

Read More...


Yes! I am interested


Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
MPU Points 14 (8DI + 6DO)
Max. I/O Points 494 (14 + 480)
Program Capacity 8k Steps
High-speed Pulse Output Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse outp
Applications Spinning Machine, Conveyer Belt (rotation Speed Control), Winding Machine (tension Control)

Click to view more

The 2nd-generation DVP-SS2 series slimline PLC retains the basic sequential control functions of the DVP-SS series PLC but delivers faster execution and enhanced real-time monitoring.



Specifications

  • MPU points: 14 (8DI + 6DO)
  • Max. I/O points: 494 (14 + 480)
  • Program capacity: 8k steps
  • COM port: Built-in RS-232 & RS-485 ports, compatible with Modbus ASCII/RTU protocol. Can be master or slave.
  • High-Speed Pulse Output:Supports 4 points (Y0 ~ Y3) of independent high-speed (max. 10kHz) pulse output
  • Supports PID Auto-tuning:DVP-SS2 saves parameters automatically after the PID auto temperature tuning is completed.
  • Built-in High-Speed Counters
Read More...


Yes! I am interested


Business Type Exporter, Supplier, Trader
Brand Name Delta
Output Type Digital
Country of Origin Made In India
Applications Used for PID Temperature/humidity Control
MPU points 20 (8DI/6DO, 4AI/2AO)
Max. I/O points 494 (14 + 480)
Program Capacity 16k Steps

The 2nd generation DVP-SX2 series slim type PLC offers 14 digital points and built-in 12-bit analog I/O points. It is extendable with DVP-S series left-side and right-side extension modules.



Applications

Used for PID temperature/humidity control, 2-axis AC motor drive constant speed control, temperature control using a analog signal monitoring of a whole factory. (PLC EASY LINK)

Read More...


Yes! I am interested
